- Bevel range of 45° + 1° left and right

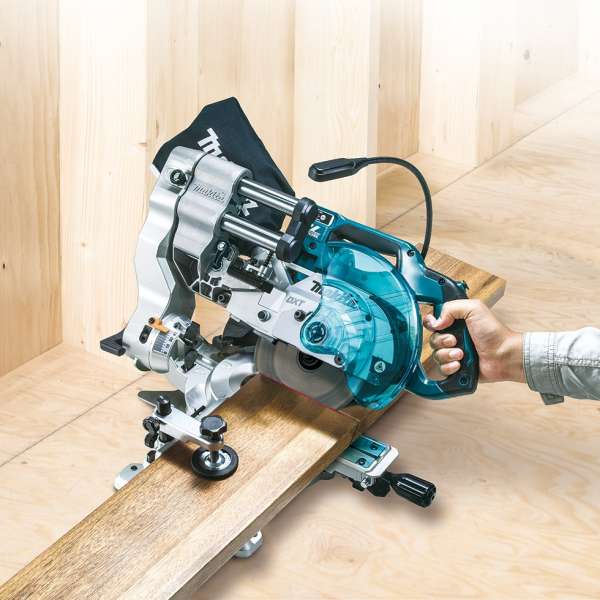

- Easy to operate even if the machine is placed close to wall

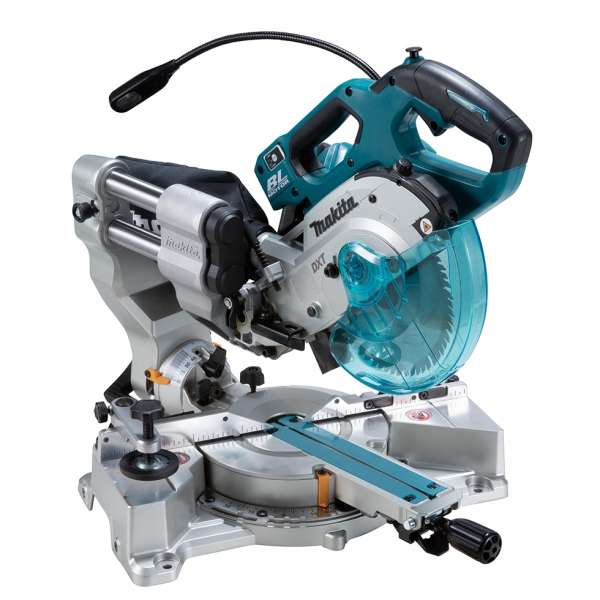

Cordless Slide Compound Miter Saw
DLS610Z 165 mm (6-1/2")
18V
6.0
5.0
4.0
3.0
2.0
1.5
Blade diameter
165 mm (6-1/2")
Max Cutting Capacity
46 x 182 mm (1-13/16" x 7-1/8") /
55x150mm(2-3/16"x5-7/8")
No load speed (rpm)
5,000
Dimensions (LxWxH)
495x400x470 mm
(19-1/2"x15-3/4"x18-1/2")
Net weight (include battery)
10.5 kg (23.1 lbs.)
Features
Standard Accessories
- TCT saw blade, Vertical vise, Hex Wrench, Triangular rule, Dust bag, Holder set
- Fast charger, Battery cartridge, Plastic case and Wireless unit not included
