- Compact design with a short overall length of 144 mm
- Electronic 4 stage impact power selection for added versatility

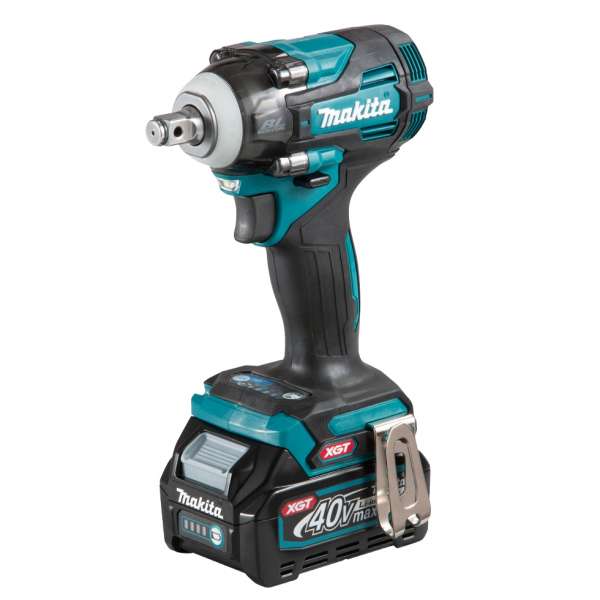

Cordless Impact Wrench
TW004G 12.7mm (1/2")
40V
8.0
5.0
4.0
2.5
Capacity
Standard bolt: M10 - M20 (3/8" - 3/4")
High strength bolt: M10 - M16 (3/8" - 5/8")
Square drive: 12.7 mm (1/2")
Impacts per minute (ipm)
Max: 0 - 4,000
Hard: 0 - 3,400
Medium: 0 - 2,600
Soft: 0 - 1,800
No load speed (rpm)
Max: 0 - 3,200
Hard: 0 - 2,600
Medium: 0 - 1,800
Soft: 0 - 1,000
Max fastening torque
350 N·m (260 ft.lbs.)
Nut-busting torque
630 N·m (465 ft.lbs.)
Dimensions (LxWxH)
144 x 86 x 253 mm
(5-5/8" x 3-3/8" x 10")
Net weight (include battery)
1.9 - 2.2 kg (4.2 - 4.9 lbs.)
Features
Standard Accessories
- Socket not included
- TW004GD202: Fast Charger(DC40RA), 2.5Ah Battery Cartridge (2pcs)
- TW004GZ: Fast charger, Battery Cartridge and Plastic Case not included
