- 3 modes of reaction time for automatic stop available both in forward and reverse rotation modes
- BL motor delivers 700 N·m of max torque

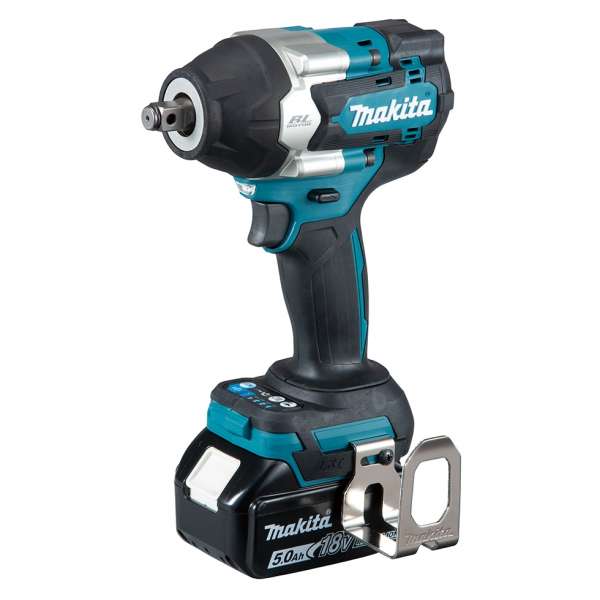

Cordless Impact Wrench
DTW700 12.7mm (1/2")
18V
6.0
5.0
4.0
3.0
2.0
1.5
Capacity
Standard bolt: M10 - M24 (3/8" - 1")
High strength bolt: M10 - M16 (3/8" - 5/8")
Square drive: 12.7 mm (1/2")
Impacts per minute (ipm)
Max: 0 - 2,700
Hard: 0 - 2,400
Medium: 0 - 1,700
Soft: 0 - 1,000
No load speed (rpm)
Max: 0 - 2,200
Hard: 0 - 1,900
Medium: 0 - 1,200
Soft: 0 - 500
Max fastening torque
700 N·m (520 ft.lbs.)
Nut-busting torque
1,000 N·m (740 ft.lbs.)
Dimensions (LxWxH)
170 x 81 x 276 mm
(6-11/16" x 3-3/16" x 10-7/8")
Net weight (include battery)
2.7 kg (6.0 lbs.)
Features
Standard Accessories
- Socket not included
- DTW700RTJ: Fast Charger(DC18RC)．5.0Ah Battery Cartridge (2pcs)
- DTW700Z: Fast charger, Battery Cartridge and Plastic Case not included
