- Miters 0°-60° left and right, with positive stops at 0°, 15°, 22.5°, 31.6°, 45° and 60° (left and right)
- Easy to operate even if the machine is placed close to wall

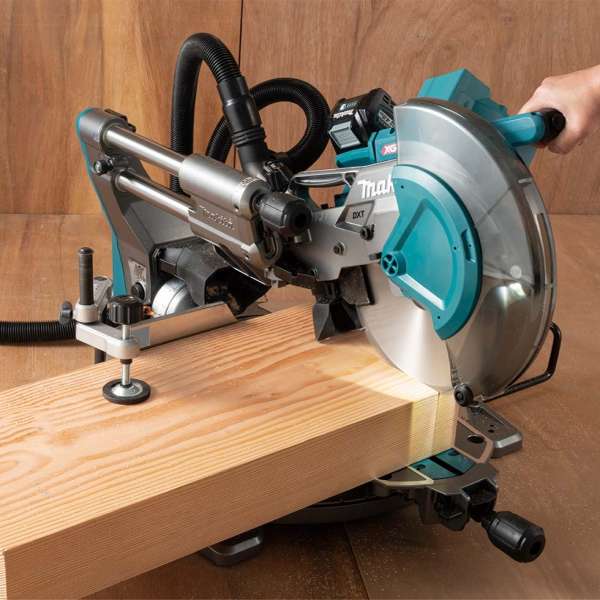

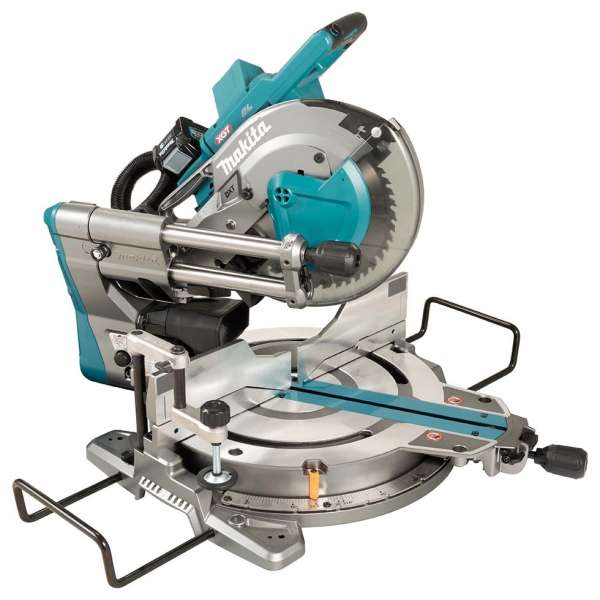

Cordless Slide Compound Miter Saw
LS004GZ 260 mm (10-1/4")
40V
5.0
4.0
2.5
Blade diameter
260 mm (10-1/4")
Max Cutting Capacity
68 x 310 mm (2-2/3" x 12-1/5")
91 x 279 mm (3-5/8" x 11")
No load speed (rpm)
3,600
Dimensions (LxWxH)
805 x 644 x 660 mm
(35-1/4" x 25-3/8" x 26")
Net weight (include battery)
27.2 kg (60.0 lbs.)
Features
Standard Accessories
- TCT saw blade, Vertical vise, Socket wrench, Triangular rule, Dust bag
- Fast charger, Battery cartridge, Plastic case and Wireless unit not included
Download File
