- 3-mode operation for A-mode / Hard mode / Soft mode for multiple applications

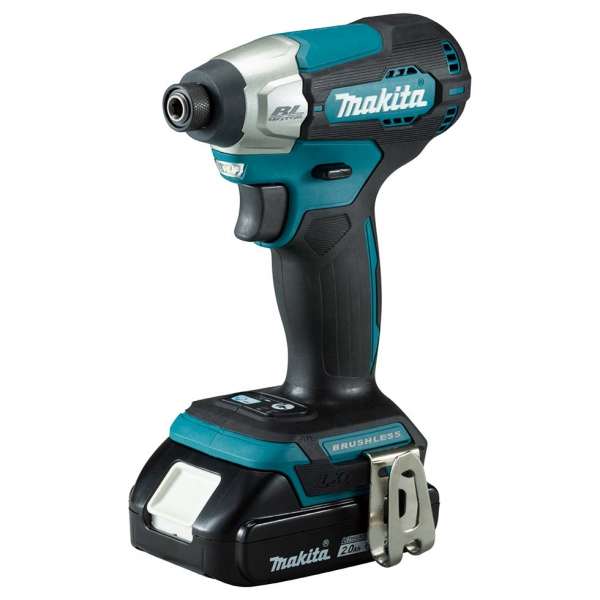

Cordless Impact Driver
DTD157SAE / DTD157Z
18V
6.0
5.0
4.0
3.0
2.0
1.5
Capacity
Machine Screw: M4 - M8 mm (5/32 - 5/16")
Standard Bolt: M5 - M14 (3/16 - 9/16")
High Strength Bolt: M5 - M12 (3/16 - 1/2")
Coarse thread (in length): 22 - 90 mm (7/8 - 3-1/2")
Impacts per minute (ipm)
Hard / Soft:
0 - 4,100 / 0 - 2,000
No load speed (rpm)
Hard / Soft:
0 - 3,000 / 0 - 1,300
Max. fastening torque
140 N·m (1,240 in.lbs.)
Dimensions (LxWxH)
133 x 81 x 232 mm
(5-1/4" x 3-3/16" x 9-1/8")
Net weight (include battery)
1.5 kg (3.3 lbs.)
Features
Standard Accessories
- DTD157SAE: Charger (DC18SD), 2.0Ah Battery cartridge 2pcs
- DTD157Z: Fast charger, Battery cartridge and Plastic case not included
