- ULTRA-COMPACT and perfect balance at only 114 mm long
- BL motor delivers 3,600 max RPM and 180 N·m of max torque

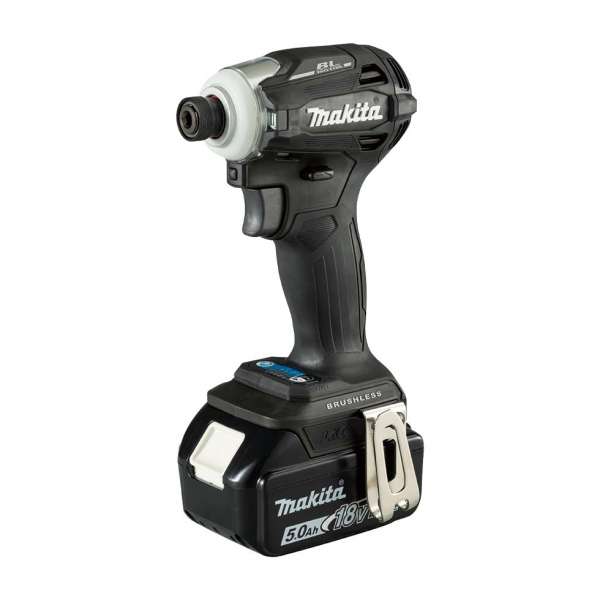

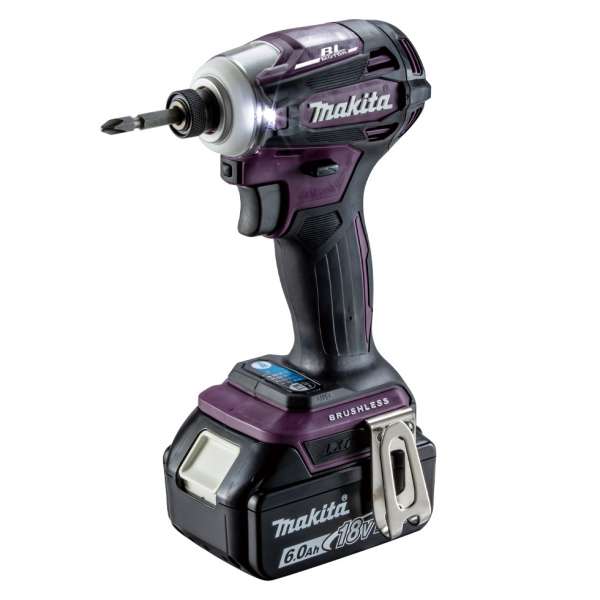

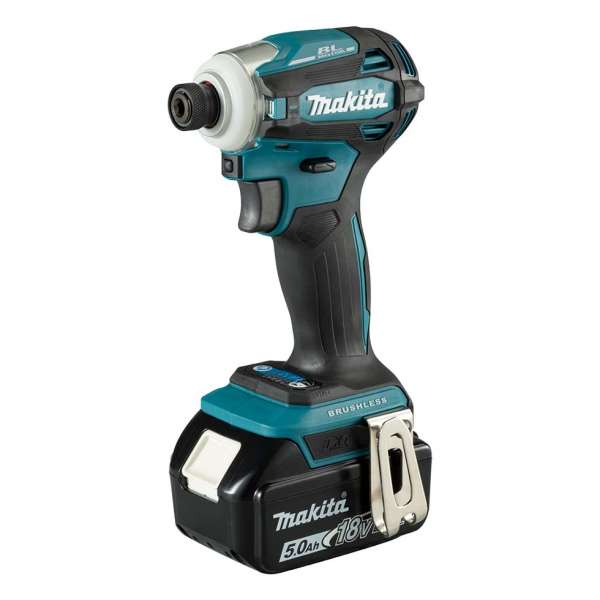

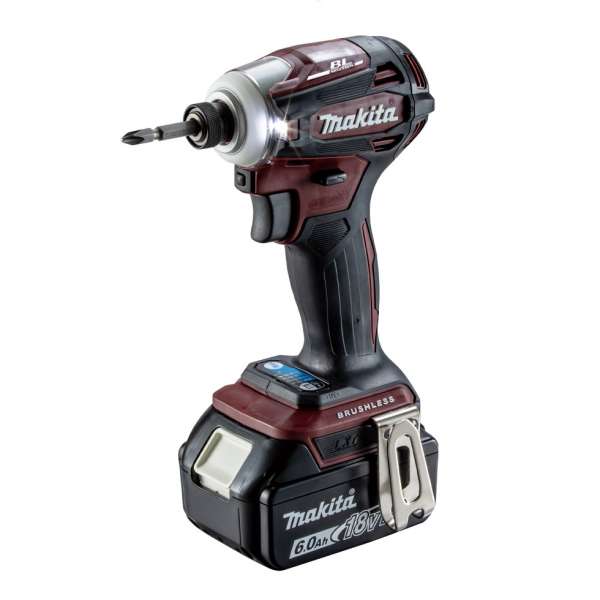

Cordless Impact Driver
DTD172
18V
6.0
5.0
4.0
3.0
2.0
1.5
Capacity
Machine Screw：M4 - M8 (5/32" - 5/16")
Standard Bolt：M5 - M16 (3/16" - 5/8")
High Tensile Bolt：M5 - M14 (3/16" -9/16")
Coarse thread (in length)：22 - 125mm (7/8" - 4-7/8")
Impacts per minute (ipm)
Max：0-3,800；Hard：0-3,600；
Med：0-2,600；Soft：0-1,100；
No load speed (rpm)
Max：0-3,600；Hard ：0-3,200；
Med：0-2,100；Soft：0-1,100；
Max. fastening torque
180N.m (1,590in.lbs)
Dimensions (LxWxH)
114x81x236mm
Net weight (include battery)
1.5 kg (3.4lbs)
Features
Standard Accessories
- DTD172RGE(Blue) / DTD172RGEB(Black): Fast charger (DC18RC), Battery cartridge 6.0Ah 2pcs and Plastic case included
- DTD172ZB(Black) / DTD172ZAP(Purple) / DTD172ZAR(Red): Fast charger, Battery cartridge and Plastic case not included
