- 3 modes of reaction time for automatic stop available both in forward and reverse rotation modes
- Electronic 4 stage impact power selection for added versatility

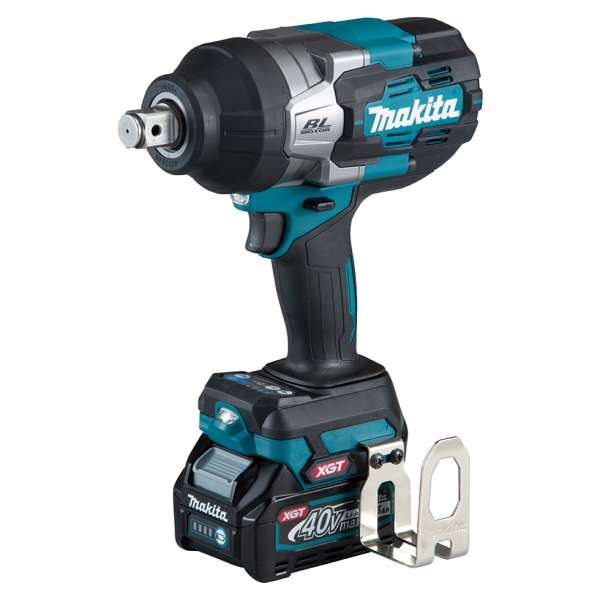

Cordless Impact Wrench
TW001G 19mm (3/4")
40V
5.0
4.0
2.5
Capacity
Standard bolt: M12 - M36 (1/2" - 1-1/2")
High strength bolt: M10 - M27 (3/8" - 1-1/8")
Square drive: 19 mm (3/4")
Impacts per minute (ipm)
Max: 0 - 2,500
Hard: 0 - 2,400
Medium: 0 - 2,200
Soft: 0 - 1,900
No load speed (rpm)
Max: 0 - 1,800
Hard: 0 - 1,400
Medium: 0 - 1,150
Soft: 0 - 950
Max fastening torque
1,800 N·m (1,330 ft.lbs.)
Nut-busting torque
1,800 N·m (1,330 ft.lbs.)
Dimensions (LxWxH)
217 x 94 x 303 mm
(8-1/2" x 3-11/16" x 11-7/8")
Net weight (include battery)
3.9 - 4.2 kg (8.6 - 9.3 lbs.)
Features
Standard Accessories
- Socket not included
- TW001GM201: Fast Charger(DC40RA), 4.0Ah Battery Cartridge (2pcs)
- TW001GZ: Fast charger, Battery Cartridge and Plastic Case not included
