- Genuine solution for high demand industrial users
- Having excellent ability to perform heavy-duty continuous tightening; Able to continuously tighten heavy duty screws such as metal fastening screws or lag screws
TD001GD205 / TD001GD206 / TD001GD207 / TD001GD208 / TD001GD203 / TD001GD204 / TD001GZ / TD001GZ01
![Variable Speed C:\Users\Calvin So\Desktop\makita_temp\Icon\2](https://makita.com.hk/img/?hash=bd43022328cf99b9bbde8cb5f1220075.png)
![Brake C:\Users\Calvin So\Desktop\makita_temp\Icon\3](https://makita.com.hk/img/?hash=c637b55b62016610acc18c16aa8b90e5.png)
![Reversing C:\Users\Calvin So\Desktop\makita_temp\Icon\4](https://makita.com.hk/img/?hash=a5ebc504862bf7b27813208797b28274.png)
![Electronic 4-Speed 55](https://makita.com.hk/img/?hash=da93d146f74c8c8823ecfb01d6b47af4.png)
![Constant Speed C:\Users\Calvin So\Desktop\makita_temp\Icon\23](https://makita.com.hk/img/?hash=ac9f874850107df53c13047786e2b00a.png)
![Dust Collecting C:\Users\Calvin So\Desktop\makita_temp\Icon\46](https://makita.com.hk/img/?hash=b155f75f3fadc88383b4934d3d595034.png)
![Carrying Case C:\Users\Calvin So\Desktop\makita_temp\Icon\49](https://makita.com.hk/img/?hash=5507335b0f964fc798acbde6b968f79b.png)
40V
5.0
4.0
2.5
Capacity
Machine Screw: M4 - M8 (5/32" - 5/16")
Standard Bolt: M5 - M16 (3/16" - 5/8")
High Strength Bolt: M5 - M14 (3/16" - 9/16")
Coarse thread (in length): 22 - 125 mm (7/8" - 4-7/8")
Impacts per minute (ipm)
Max: 0 - 4,400
Hard: 0 - 3,600
Mid: 0 - 2,600
Soft: 0 - 1,100
No load speed (rpm)
Max: 0 - 3,700
Hard: 0 - 3,200
Mid: 0 - 2,100
Soft: 0 - 1,100
Max. fastening torque
220 N·m (1,950 in.lbs.)
Dimensions (LxWxH)
120x86x250 mm
(4-3/4"x3-3/8"x9-7/8")
Net weight (include battery)
2.0 kg (4.4 lbs.)
Features
Standard Accessories

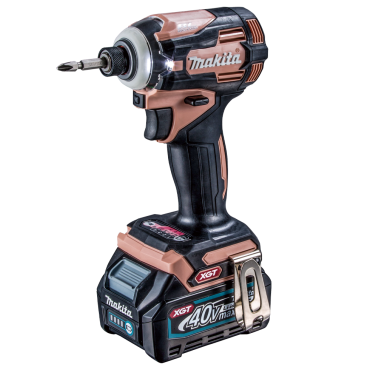

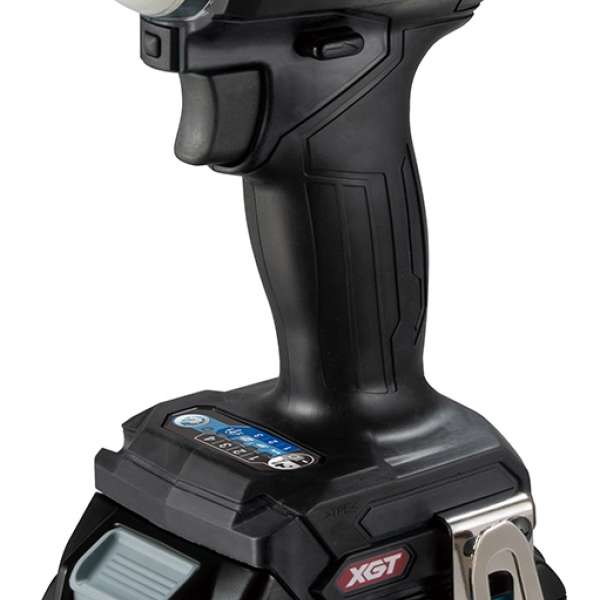

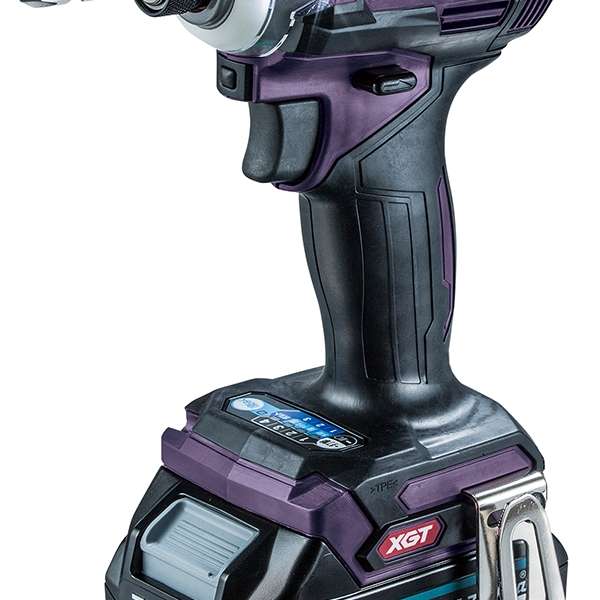

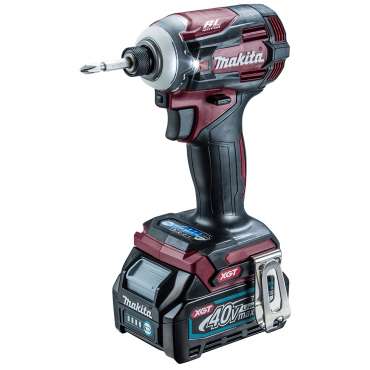

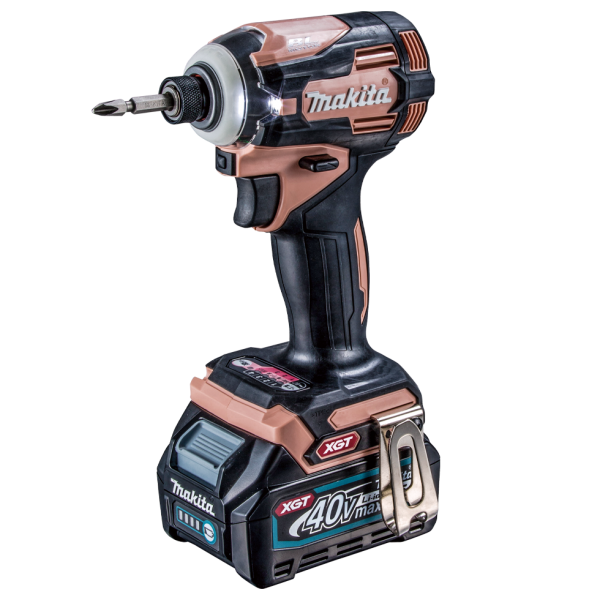

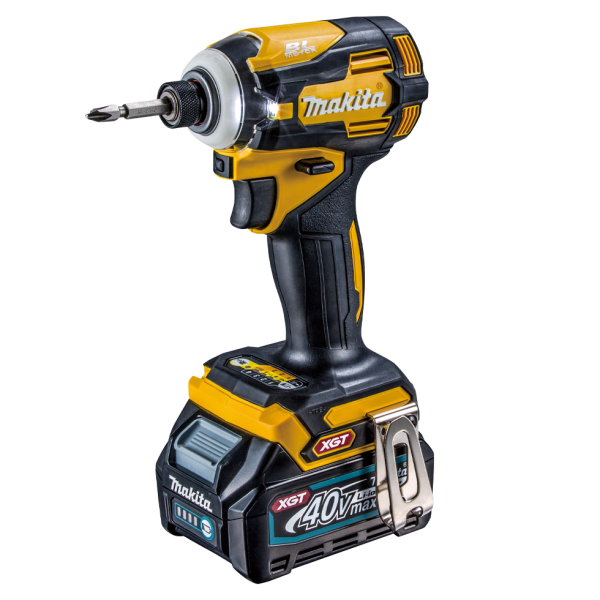

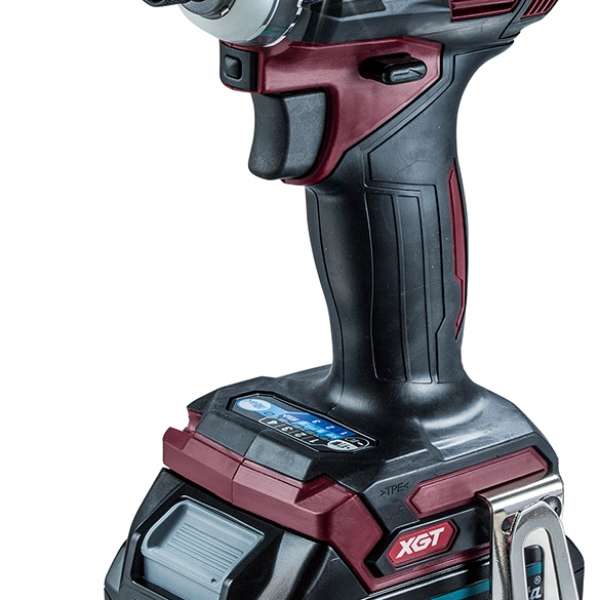

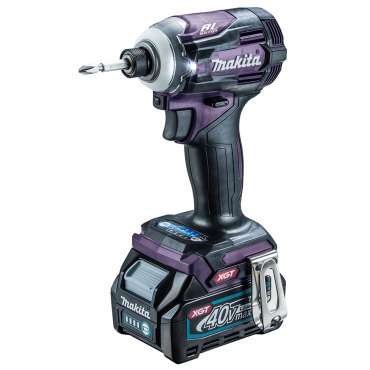

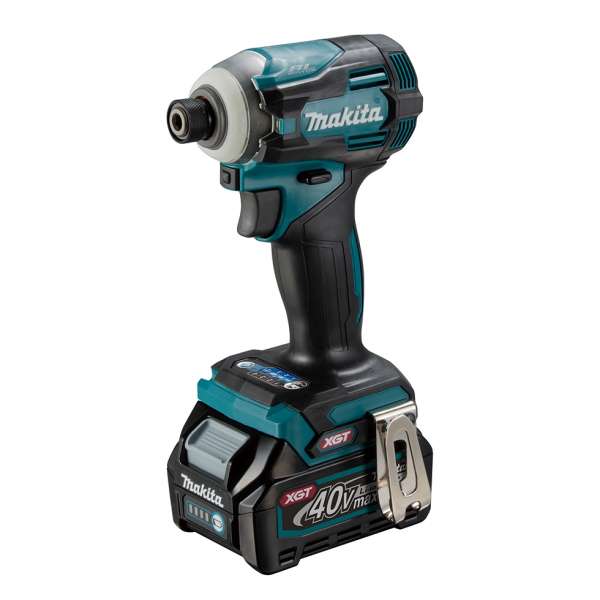

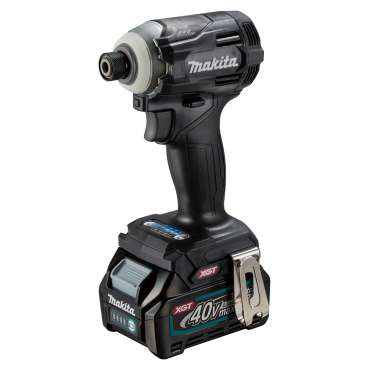

TD001GD203(Makita Blue) / TD001GD204(Black) / TD001GD205(Red) / TD001GD206(Purple) / TD001GD207(Yellow) / TD001GD208(Copper)
- Fast charger (DC40RA), Battery cartridge 2.5Ah 2pcs and Plastic case included
TD001GZ / TD001GZ01
- Fast charger, Battery cartridge and Plastic case not included
