- Redesigned mode selection switch for one-handed mode selection
Cordless Impact Driver
DTD171
18V
6.0
5.0
4.0
3.0
2.0
1.5
Capacity
Machine Screw：M4 - M8 (5/32" - 5/16")
Standard Bolt：M5 - M16 (3/16" - 5/8")
High Tensile Bolt：M5 - M14 (3/16" -9/16")
Coarse thread (in length)：22 - 125mm (7/8" - 4-7/8")
Impacts per minute (ipm)
Max：0-3,800；Hard：0-3,600；
Med：0-2,600；Soft：0-1,100；
No load speed (rpm)
Max：0-3,600；Hard ：0-3,200；
Med：0-2,100；Soft：0-1,100；
Max. fastening torque
180N.m (1,590in.lbs)
Dimensions (LxWxH)
116x79x236mm
(4-9/16"x3-1/8"x9-1/4")
Net weight (include battery)
1.6 kg (3.4lbs)
Features
Standard Accessories

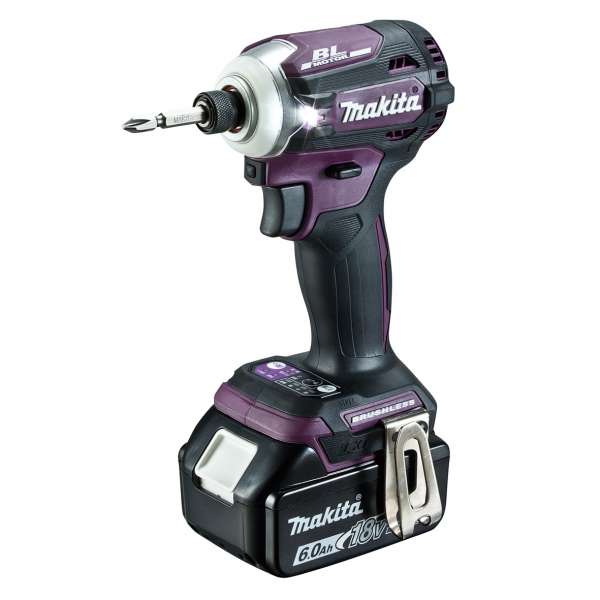

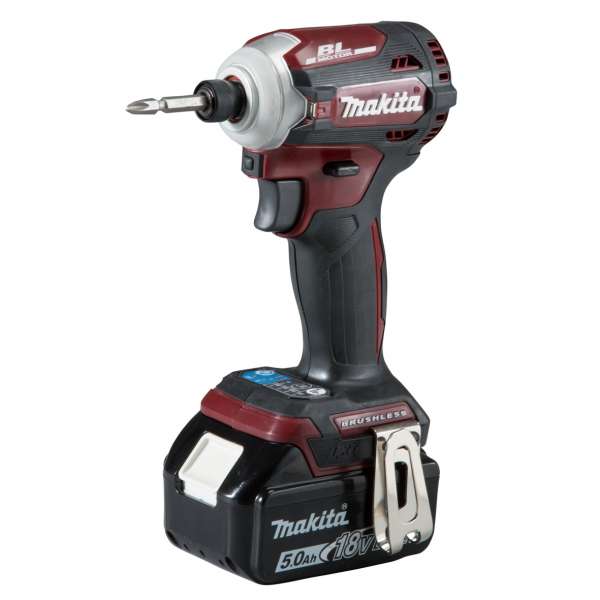

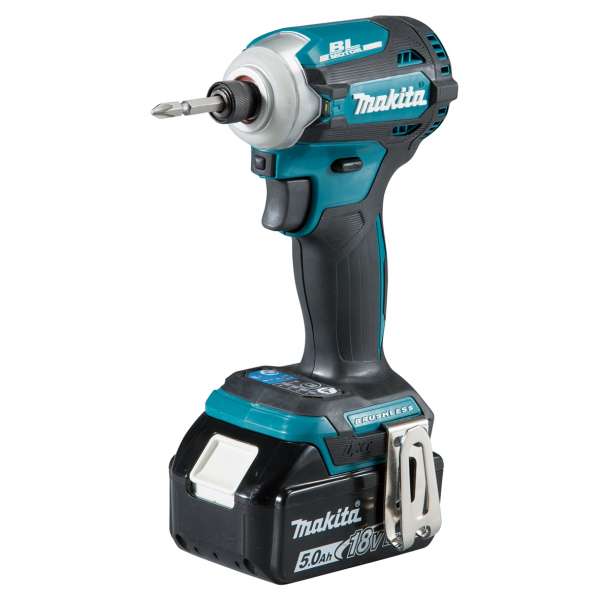

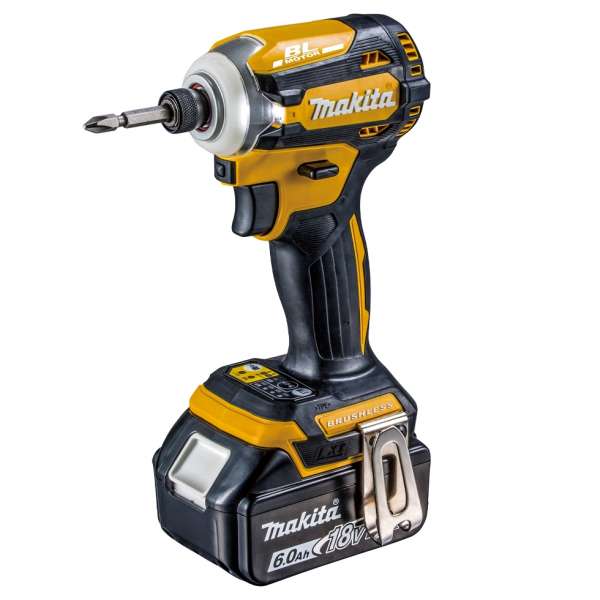

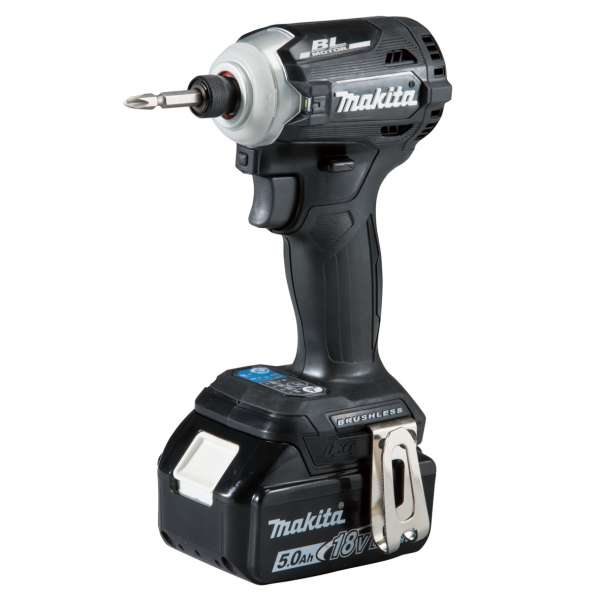

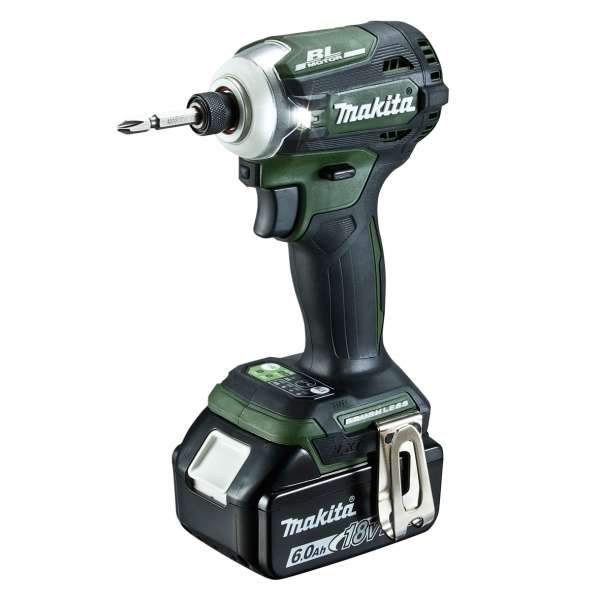

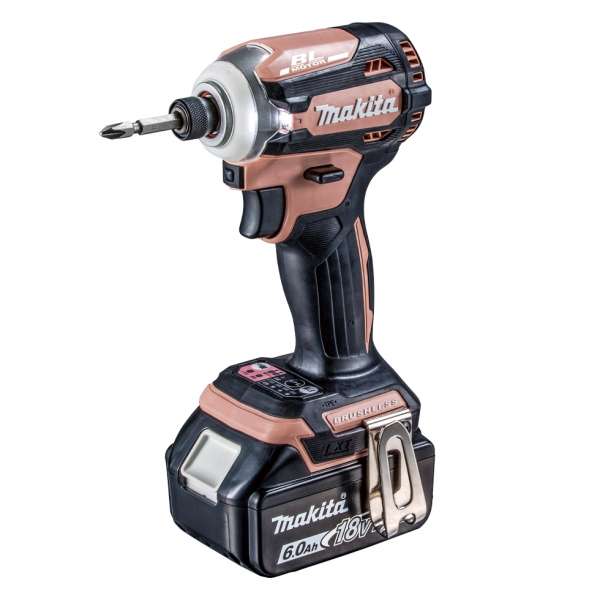

DTD171GE (Original) / DTD171GEAR (Red) / DTD171GEB (Black) /
DTD171GEAG (Green) / DTD171GEAP (Purple) / DTD171GEFY (Yellow) / DTD171GEFC (Copper)
- Fast charger (DC18RC), Battery cartridge 6.0Ah 2pcs and Plastic case included
DTD171Z (Original) / DTD171ZAR (Red) / DTD171ZB (Black) /
DTD171ZAG (Green) / DTD171ZAP (Purple) / DTD171ZFY (Yellow) / DTD171ZFC (Copper)
- Fast charger, Battery cartridge and Plastic case not included
