- Compact design for perfect handling

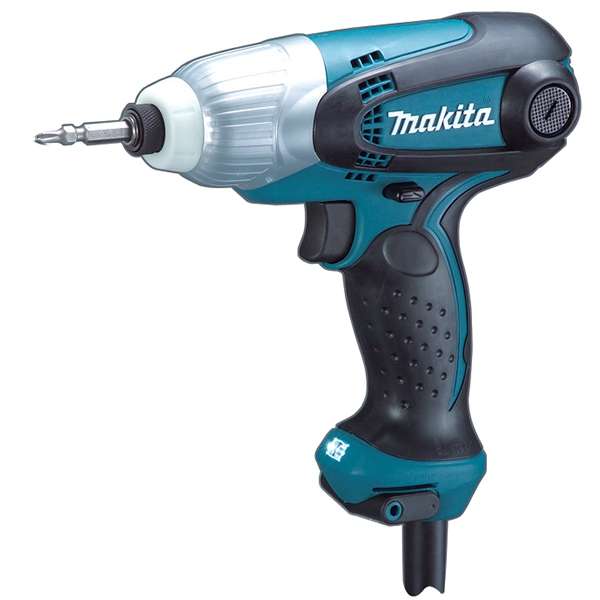

Impact Driver
TD0101F
![Double Insulation C:\Users\Calvin So\Desktop\makita_temp\Icon\1](https://makita.com.hk/img/?hash=e59734a02efa730c8fe473f8833fba9d.png)
![Variable Speed C:\Users\Calvin So\Desktop\makita_temp\Icon\2](https://makita.com.hk/img/?hash=bd43022328cf99b9bbde8cb5f1220075.png)
![Reversing C:\Users\Calvin So\Desktop\makita_temp\Icon\4](https://makita.com.hk/img/?hash=a5ebc504862bf7b27813208797b28274.png)
![Built-in Job Light C:\Users\Calvin So\Desktop\makita_temp\Icon\47](https://makita.com.hk/img/?hash=989eb1df7bdb57e9d219788f4be61c10.png)
110V
220V
Continuous rating input
230W
Capacity
Machine screw: M4-M8 (5/32"-5/16")
Standard bolt: M5-M14 (3/16"-9/16")
High tensile bolt: M5-M10 (3/16"-3/8")
Coarse thread (in length): 22-90mm (7/8"-3-1/2")
Driving shank (Hex)
6.35mm (1/4")
Impacts per minute (ipm)
0-3,200
No load speed (rpm)
0-3,600
Max. fastening torque
100N.m (885in.lbs)
Dimensions (LxWxH)
184x67x192mm (7-1/4"x2-5/8"x7-9/16")
Net weight
0.99kg (2.2lbs)
Power supply cord
2.5m (8.2ft)
Features
Standard Accessories
- Phillips bit
Download File
