- Compact, light weight and bendable body for different purposes

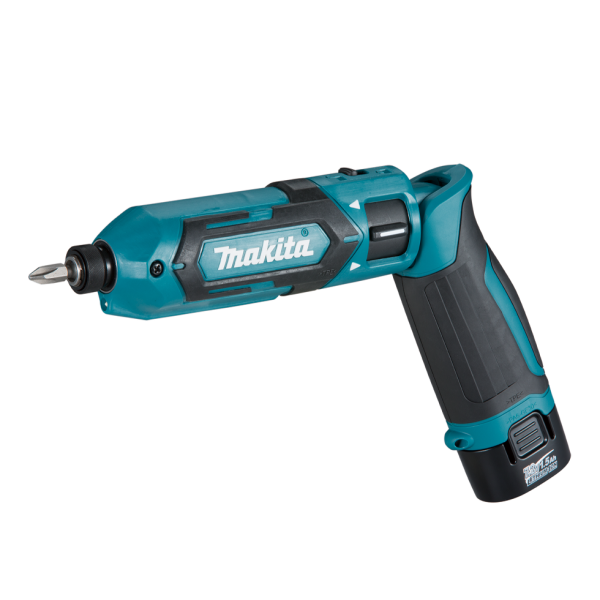

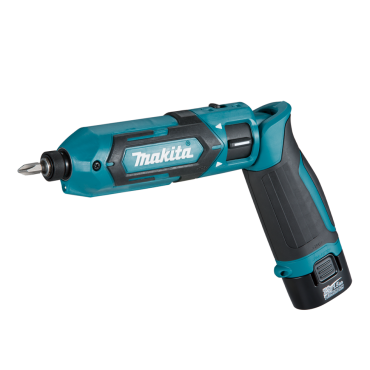

Cordless Impact Driver
TD022D
7.2V
1.5
Capacity
Machine screw: M3-M8 (1/8"-5/16")
Standard bolt: M3-M8 (1/8"-5/16")
High tensile bolt: M3-M6 (1/8"-1/4")
Coarse thread (in length): 22-45mm (7/8"-1-3/4")
Impacts per minute (ipm)
0-3,000
No load speed (rpm)
0-2,450
Max. fastening torque
25 N·m (220 in.lbs.)
Dimensions (LxWxH)
Pistol form: 227x42x144mm (8-5/16"x1-5/8"x5-5/8")
Straight form: 282x42x52mm (11-1/8"x1-5/8"x2-1/16")
Net weight (include battery)
0.54kg (1.2lbs)
Features
Standard Accessories
- Torsion screw bit, Holster
- TD022DSE: Charger (DC07SA), 1.5Ah Battery cartridge 2pcs
