- Soft-start feature enables smooth start-up

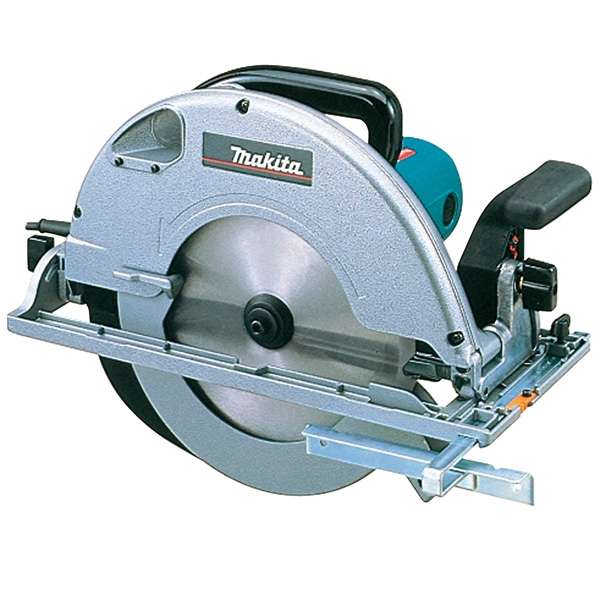

Circular Saw
5103R 270mm (10-5/8")
203A110V
220V
Continuous rating input
220V: 2,100W
110V: 1,650W
Max cutting capacity
0 degrees: 100mm (3-15/16")
45 degrees: 73mm (2-7/8")
Blade diameter
270mm (10-5/8")
No load speed (rpm)
3,800
Dimensions (LxWxH)
Overall length: 442mm (17-3/8")
Net weight
9.4kg (20.7lbs)
Power supply cord
2.5m (8.2ft)
Features
Standard Accessories
- Rip fence (guide rule), Hex wrench
- Saw blade not included
