- Double sliding mechanism makes it lighter and more compact, requiring smaller work space, allowing quick storing and easy transport

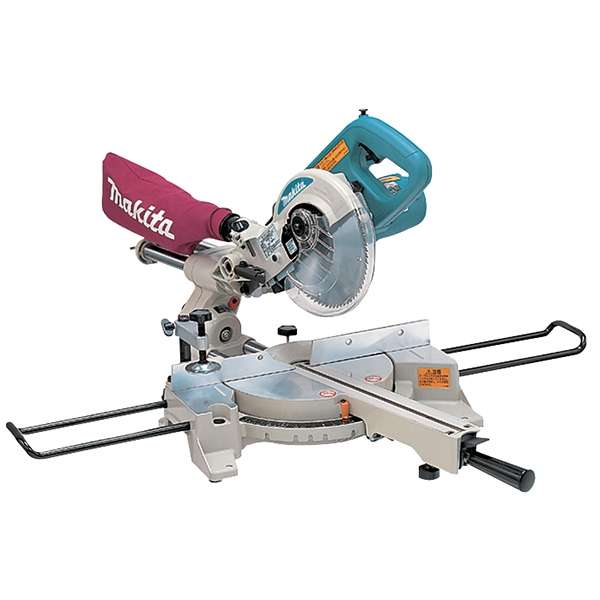

Slide Compound Saw
LS0714 / LS0714N(110V) 190mm (7-1/2")
303A110V
220V
Continuous rating input
1,010W
Capacity
Miter angle 0 degrees: 52x300mm (2-1/16" x 11-3/4")
Miter angle left / right 45 degrees: 52x212mm(26-3/8"x17"x18")
Blade diameter
190mm (7-1/2")
No load speed (rpm)
6,000
Dimensions (LxWxH)
670x430x458mm (26-3/8"x17"x18")
Net weight
13.1kg (28.9lbs)
Power supply cord
2.5m (8.2ft)
Features
Standard Accessories
- Carbide-Tipped saw blade, Vertical vise, Hex wrench, Dust bag, Holder assembly
Download File
