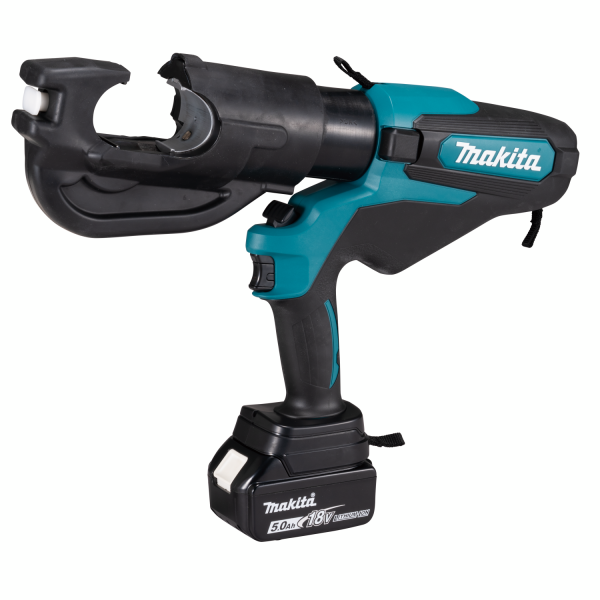

Cordless Crimper

DTC302

18V

6.0

5.0

4.0

3.0

2.0

1.5

Output force

120 kN

Crimping capacity

Cu: ø22.5 mm (400 mm²)

Al: ø19.5 mm (300 mm²)

Auto retract function

YES (Reverse rotation of motor)

On/Off setting of Auto retract function

YES

Dimensions (L x W x H)

437 x 94 x 349 mm

(17-1/4 x 3-11/16 x 13-3/4")

(Using BL1860B Battery)

Net weight

7.5 - 7.8 kg

(16.5 - 17.2 lbs.)

(Using BL1815N - BL1860B Battery)

Features

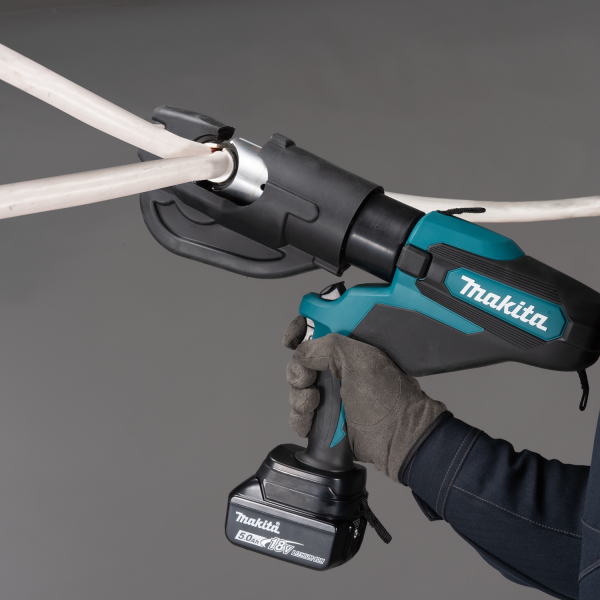

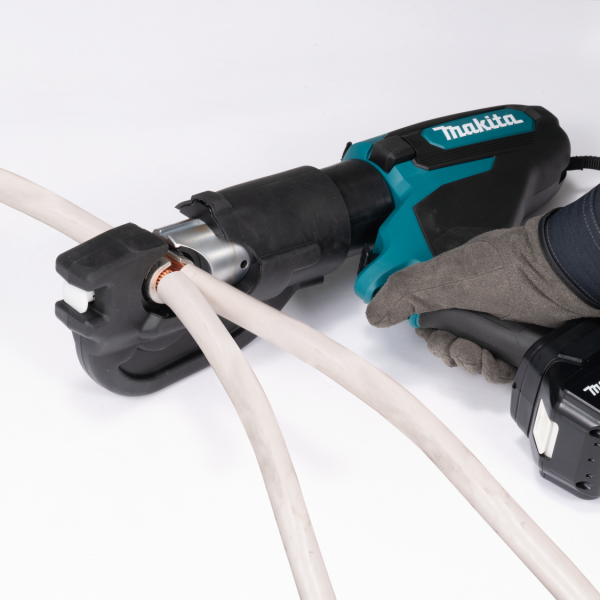

With a maximum crimping capacity of ø22.5 mm (400 mm²), this tool is capable of crimping terminals onto large-diameter electric wires.
Crimping capacity
• Cu: ø22.5 mm (400 mm²)
• Al: ø19.5 mm (300 mm²)
Auto retract function
• The ram automatically retracts to its original position after completing the crimping operation, enhancing work efficiency.
• The On/Off setting of the auto retract function can be switched.
Single LED job light with afterglow function
Trigger-lock function to minimize accidental pulling of the switch trigger
Straps for attaching the optional shoulder strap
Soft grip provides increased comfort during use
Thirteen types of crimping dies, compatible with DIN standards, are provided as optional accessories.

Standard Accessories
