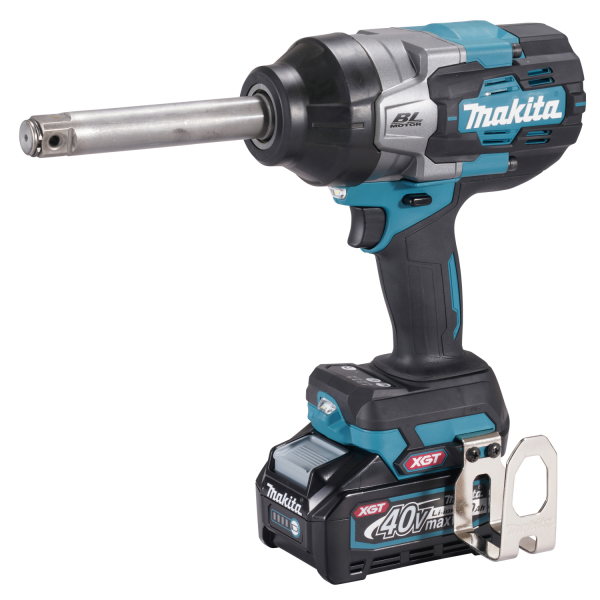

- 40Vmax XGT BL Cordless 3/4" (19 mm) 1,500 N·m (1,110 ft.lbs.) Impact Wrench, Forward/Reverse Rotation Auto Stop Mode
- Ergonomically designed handle with rubberized soft grip provides increased comfort
- Ensures stable torque until the end of the battery capacity with constant speed control

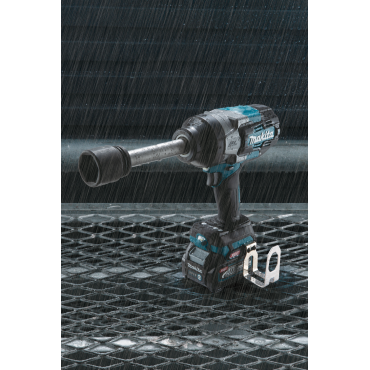

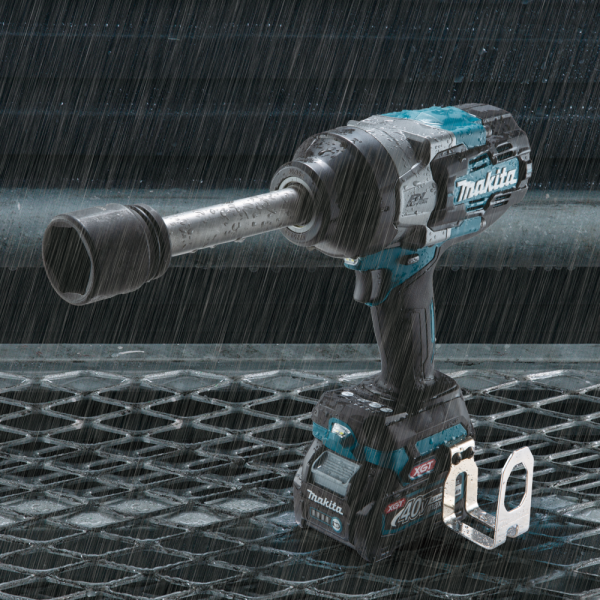

- High water-resistance compatible with XPT (eXtreme Protection Technology)
Cordless Impact Wrench
TW011G 19 mm (3/4")
40V
8.0 Ah
5.0 Ah
4.0 Ah
2.5 Ah
2.0 Ah
Capacity
Square drive: 19.0 mm (3/4")
Anvil type
Long
Anvil length
138 mm (5-7/16")
Impacts per minute (ipm)
Max: 0 - 2,600 minˉ¹
Hard: 0 - 2,000 minˉ¹
Med.: 0 - 1,400 minˉ¹
Soft: N/A (In Soft Mode, the tool stops as soon as an impact is detected.)
No load speed (rpm)
Max: 0 - 1,800 minˉ¹
Hard: 0 - 1,100 minˉ¹
Med.: 0 - 700 minˉ¹
Soft: 0 - 500 minˉ¹
Max fastening torque
6-sec tightening: 1,500 N·m
3-sec tightening: 1,250 N·m
(Using BL4025 Battery, When tightening an M30 friction grip bolt)
Nut-busting torque
1,900 N·m (1,400 ft.lbs.)
(Using BL4025 Battery, The maximum torque value at which an M33 friction grip bolt can be loosened within 3 seconds.)
Dimensions (LxWxH)
329 x 94 x 297 mm (13 x 3-11/16 x 11-3/4")
(Using BL4025 Battery)
Net weight (include battery)
4.3 - 5.5 kg
(9.5 - 12.1 lbs.)
(Using BL4020 - BL4080F Battery)
Features
Standard Accessories
- Hook
- TW011GZ: Battery and Charger no included.
