- More comfortable operation by dual spring technology consisting of two types of springs with different load capacities, to adjust impact power according to the workload
- 4-speed power selection and 6 Assist modes (2 T-modes, 1 Wood mode, 3 Bolt modes)

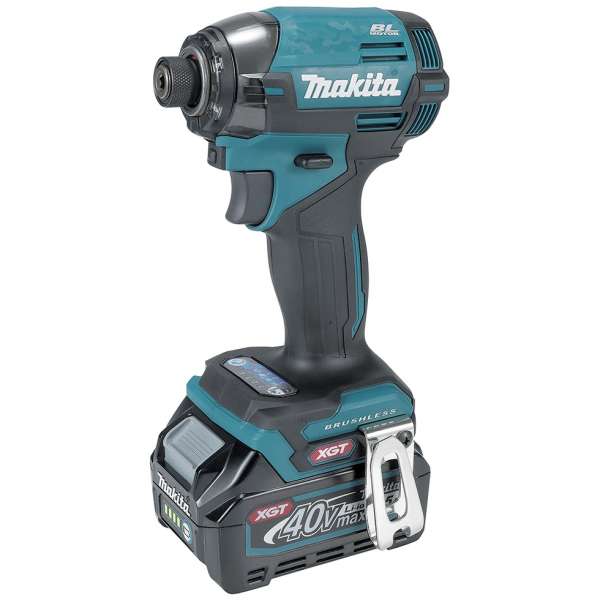

Cordless Impact Driver
TD002G
40V
8.0
5.0
4.0
2.5
2.0
Capacity
Machine screw: M4 - M8 (5/32 - 5/16")
Standard bolt: M5 - M16 (3/16 - 5/8")
High strength bolt: M5 - M14 (3/16 - 9/16")
Coarse thread (in length): 22 - 125 mm (7/8 - 4-7/8")
Steel: 22 mm (7/8")
Wood (Auger bit): 24 mm (15/16")
Impacts per minute (ipm)
Max: 0 - 4,600
Hard: 0 - 3,600
Medium: 0 - 2,600
Soft: 0 - 1,400
No load speed (rpm)
Max: 0 - 3,700
Hard: 0 - 3,200
Medium: 0 - 2,100
Soft: 0 - 1,100
Max. fastening torque
220 N·m (1,950 in.lbs.)
Dimensions (LxWxH)
w/BL4025:
119 x 86 x 247 mm (4-11/16 x 3-3/8 x 9-3/4")
Net weight (include battery)
1.7 - 2.9 kg (3.7 - 6.4 lbs.)
Features
Standard Accessories
- Belt clip, Hand strap
- TD002GZ: Fast charger, Battery cartridge and Plastic case not included
