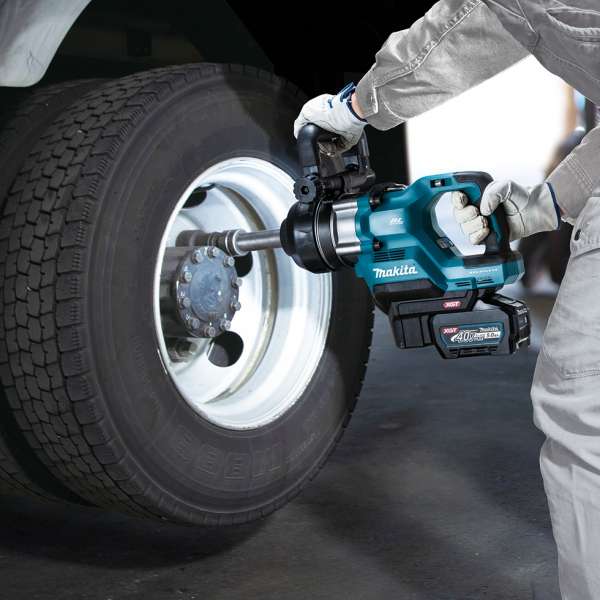

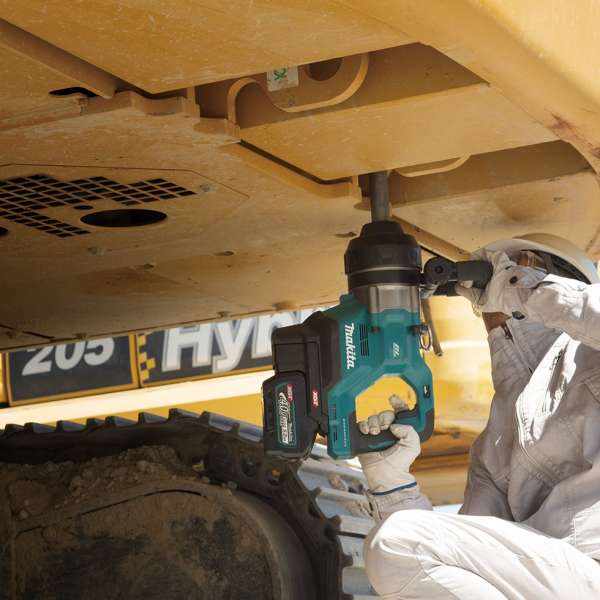

- Excellent combination of high torque and maneuverability for tightening large diameter bolts

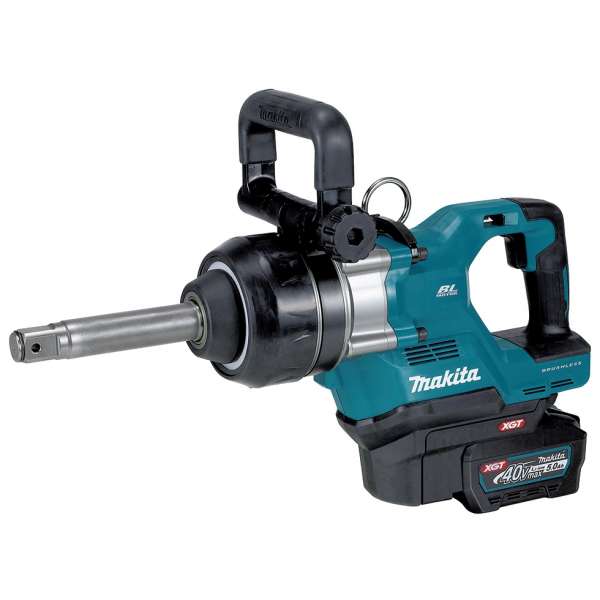

Cordless Impact Wrench
TW010G 1" (25.4 mm)
40V
8.0 Ah
5.0 Ah
4.0 Ah
Capacity
Standard bolt: M27 - M45 (1-1/8 - 1-7/8")
High strength bolt: M20 - M33 (3/4 - 1-3/8")
Square drive: 25.4mm (1")
Impacts per minute (ipm)
Max: 0 - 1,750
Hard: 0 - 1,500
Medium: 0 - 1,300
Soft: 0 - 1,200
No load speed (rpm)
Max: 0 - 1,200
Hard: 0 - 850
Medium: 0 - 700
Soft: 0 - 600
Max fastening torque
3,150 N·m (2,323 ft.lbs.)
Nut-busting torque
4,000 N·m (2,950 ft.lbs.)
Dimensions (LxWxH)
w/ 2.5Ah battery: 570 x 135 x 276 mm
(22-1/2 x 5-5/16 x 10-7/8")
Net weight (include battery)
12.0 - 12.9 kg (26.5 - 28.4 lbs.)
Features
Standard Accessories
- TW010GZ: Fast charger, Battery Cartridge and Plastic Case not included
Download File
