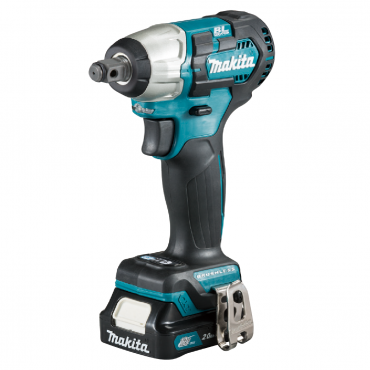

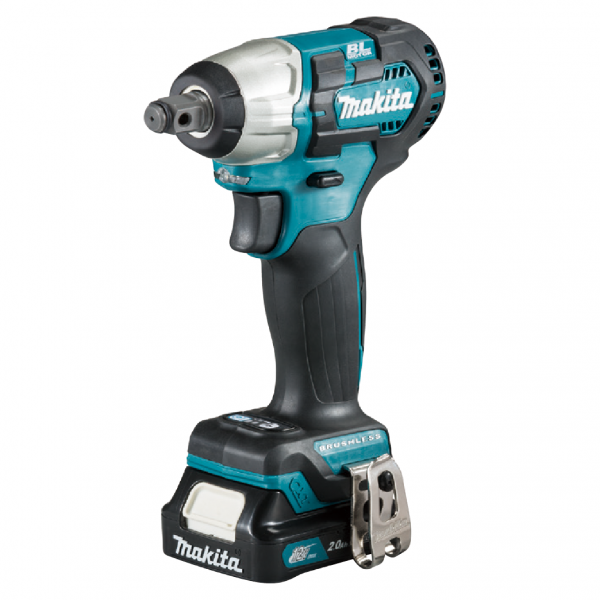

Cordless Impact Wrench
C:\Users\Calvin So\Desktop\makita_temp\Technology\3
C:\Users\Calvin So\Desktop\makita_temp\Technology\15
TW161DSAE / TW161DZ 12.7mm (1/2")
C:\Users\Calvin So\Desktop\makita_temp\Icon\2C:\Users\Calvin So\Desktop\makita_temp\Icon\3C:\Users\Calvin So\Desktop\makita_temp\Icon\4C:\Users\Calvin So\Desktop\makita_temp\Icon\7C:\Users\Calvin So\Desktop\makita_temp\Icon\47
12Vmax
4.0
2.0
Capacity
Standard bolt: M8 - M16 (5/16" - 5/8")
High tensile bolt: M6 - M12 (1/4" - 1/2")
Square drive: 12.7mm (1/2")
Impacts per minute (ipm)
High: 0-3,600
Low: 0-2,000
No load speed (rpm)
High: 0-2,400
Low: 0-1,300
Max. fastening torque
165N.m (1,460in.lbs)
Dimensions (LxWxH)
150x66x213 mm
(5-7/8"x2-5/8"x8-3/8")
Net weight
1.2kg (2.7lbs)
Features
  • Ultra compact design at only 150 mm (5-7/8") long and lightweight for reduced operator fatigue
Standard Accessories
  • Socket not included
  • TW140DSAE : Fast charger (DC10SB), 2.0Ah Battery cartridge 2pcs
  • TW140DZ : Fast charger, Battery cartridge and Plastic case not included
